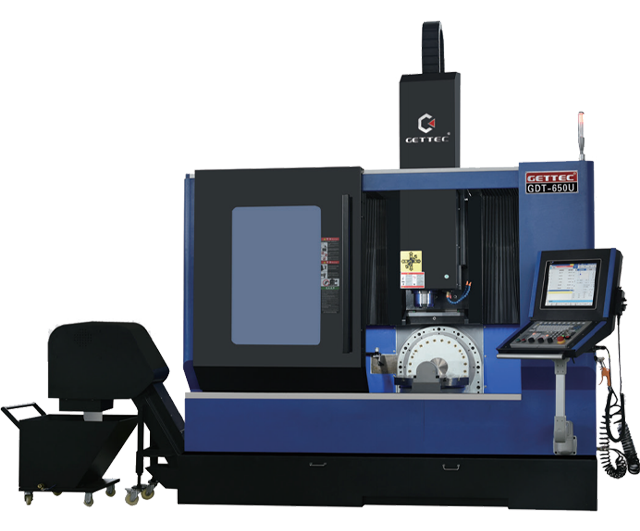

Excellent structural design
The optimized structure of the cow head is equipped with CNC A-axis and C-axis tables, and the machine performance is stable.
High stability and precision
High stability castings, excellent vibration damping performance, with three-axis high-precision ball screw and ultra-wide roller guide to ensure high rigidity and high stability of the machine.
Higher efficiency and productivity
The feed shaft drive with high dynamic performance greatly reduces processing time.
Machine data | Unit | GDT-180U | GDT-320U | GDT-650U | |
X-axis travel | mm | 600 | 800 | 820 | |
Y-axis travel | mm | 450 | 360 | 520 | |
Z-axis travel | mm | 330 | 400 | 500 | |
Distance from spindle end face to work surface | mm | 45-375 | 150-550 | 150-650 | |
Distance from spindle center to column protection surface | mm | 464 | 183.5 | 187 | |
Table size | mm | Φ180 | Φ320 | Φ650 | |
Maximum bearing capacity | kg | 100 | 100 | 300 | |
Ball screw specifications | BT30/Φ120 | BT40/Φ120 | BT40/Φ150 | ||
Guide screw specifications | RGW30HC(roller)/ RGW30HC(roller)/ RGW30HC(roller) | RGW35HC(roller)/ RGW35HC(roller)/ RGW35HC(roller) | RG45HA(roller)/ RG45HA(roller)/ RG45HA(roller) | ||
Taper specification | BT30/Φ120 | BT40/Φ120 | BT40/Φ150 | ||
Three-axis motor (X/Y/Z) | Nm | 12/12/16 | 22/22/22 | 22/22/22 | |
Spindle motor | kw | 5.5 | 7.5 | 11 | |
Spindle motor speed | rpm | 20000 | 12000/15000/20000 | 12000/15000/20000 | |
X, Y, Z axis fast moving speed | m/min | 36/36/36 | 36/36/36 | 24/24/24 | |
Machine weight (about) | T | 3.5 | 7 | 10 |
Due to technical updates, product parameters are subject to change without prior notice.
A professional engineering technical support team, combined with the actual needs of customers and on-site conditions, provides one-to-one technical services and completes customized industry solutions.
