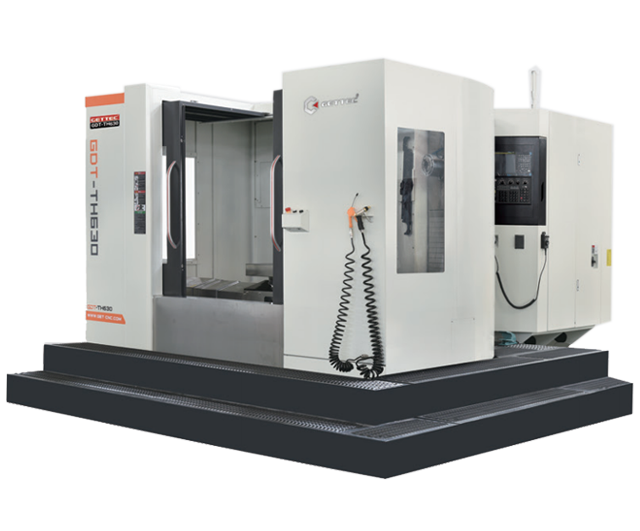

Horizontal machining center series
The horizontal machining center adopts mechatronics design, which is beautiful in shape and can carry out highspeed precision cutting.
The whole machine adopts inverted "T" type structure, the column moves back and forth, the table moves around the structure. The whole machine has high rigidity, high stability and high reliability.
The three-axis adopts the mode of direct motor drive, suitable for high-speed feed cutting.
Each shaft ball screw is pre-stretched and installed to further improve transmission rigidity and positioning accuracy.
The machine has automatic chip removal function and large flow chip flushing function. The protective shape is beautiful, the operation and maintenance are convenient.
| Machine data | Unit | GDT-TH500 | GDT-TH630 | GDT-TH800 | GDT-TH1000 | |
| Table size | mm | 500×500 | 630×630 | 800×800 | 1000×1000 | |
| Number of tables | Standard single workbench, optional exchange double workbench | |||||
| Table rotation | ° | 1°×360 | 1°×360 | 1°×360 | 1°×360 | |
| Maximum load | kg | 500 | 1200 | 2000 | 2500 | |
X/Y/Z axis trave | mm | 600/610/600 | 1050/750/900 | 1300/1000/1000 | 1600/1000/1000 | |
| Distance from spindle center to work surface | mm | 40-650 | 120-870 | 120-1120 | 120-1120 | |
| Distance from spindle end face to center of table | mm | 60-660 | 130-1030 | 200-1200 | 200-1200 | |
| Taper specification (Model/mounting size) | BT40/Φ150 | BT50/Φ190 | BT50/Φ190 | BT50/Φ190 | ||
| Table T-slot (Number size spacing) | mm | 5-22/100 | 5-22/125 | 5-22/200 | 5-22/200 | |
| Maximum spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | |
| Three-axis cutting feed rate | mm/min | 10-10000 | 10-10000 | 10-10000 | 10-10000 | |
| Three axes fast moving X/Y/Z | m/min | 30 | 24 | 20 | 20 | |
| Positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | |
| Repeated positioning accuracy | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 | |
| Spindle drive motor | kw | 11 | 15 | 15 | 15 | |
| X,Y,Z drive the motor | kw | 3/3/3 | 3/3/3 | 4/3/4 | 4/3/4 | |
| Tool storage capacity (optional) | 24/30 | 30/40 | 30/40 | 30/40 | ||
| Floor area (length × width × height) | mm | 2500/3300/2600 | 3850/3500/3200 | 4850/4300/4100 | 4850/4300/4100 | |
| Machine weight (about) | T | 7 | 10 | 12 | 16.5 | |
| Remark | Cross slide structure | Inverted "T" structure | ||||
Due to technical updates, product parameters are subject to change without prior notice.
A professional engineering technical support team, combined with the actual needs of customers and on-site conditions, provides one-to-one technical services and completes customized industry solutions.
